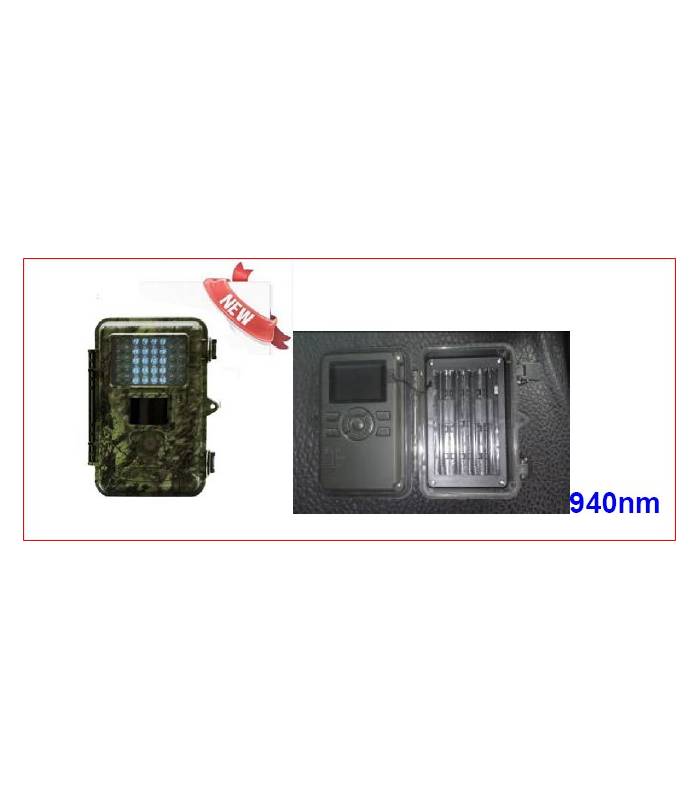

CAMARA NOCTURNA 8 MEGAS LED INVISIBLE

Especificaciones Tecnicas:

Image Sensor

5Mega Pixels Color CMOS

Maximum Pixel Size

5mp=2560x1920,8mp=3328*2496

Lens

F=3.1; FOV=40°; Auto IR-Cut-Remove (at night)

IR-Flash

40 high-density LED ranging 22 meters

Power

4 or 8 AA ‘s or 6V outer DC power

Weather-proof

Weather-proof for outdoor use (IP54)

Display Screen

2.0"TFT LCD

Memory

upto 32GB

Picture Size

5mp=2560x1920,8mp=3328*2496

Video Size

640x480: 16fps; 320x240: 20fps

PIR sensitivity

PIR with 3 sensitivity level: High/Normal/Low,Off

Operation

Day/night

Response Time

1s

Triggering Interval

1sec. - 60min. programmable

Shooting Numbers

1~3 programmable

Video Length

1-60sec. programmable

Timer Switch On

/Off Time Lapse programmable

Power Supply

8xAA recommended, 4xAA as emergency power

Stand-by Current

< 0.3mA(<7mAh/day)

Power Consumption

150mA (+450mA when IR-LED lighted)

User Interface

Wired remote control with LCD display and Keyboard

Interface

TV out (NTSC); USB; SD card holder; 6V DC external

Fixation Art

Belt; Cable lock up to Φ10mm; Nail up to Φ5mm

Operation Temperature

-20 - 60°C (Storage temperature: -30 - 70°C)

Operation Humidity

5% - 90%

Security authentication

FCC/CE/ROHS.

Estimación duración tarjeta memoria:

Tamaño Tarjeta       Numero imagenes ( jpg)         Duración video ( AVI)

                                         3MP       5MP                    320x240     640X480

      512 MB                      1000       600                       30 min         15 min

        1 GB                         2000      1200                      60 min        30 min

         2 GB                        4000      2400                      120 min      60 min

        Máximo 32 GB de Tarjeta memoria.
